By integrating with our WooCommerce plugin, you'll gain access to the full range of our solutions, including PCI DSS scope reduction via Hosted Fields (Drop-In UI), credit and debit processing, Digital Wallets, Card Storage, 3D Secure, and Order Management.

Specifications

WordPress version: 5.4 or higher
Tested up to: 6.1.1
PHP version: 7.1 or higher

Step 1: Installation

Access plugin

Click the button below to download this plugin and view any related documentation available.

Go to Plugin/Marketplace

Credentials

Sandbox credentials

Our WooCommerce plugin requires credentials to our Unified Payments gateway. Test credentials can be obtained after registering with our developer portal. Once registration is complete, the required App Key and App Id can be found under the Unified Payments Apps section of the Profile menu. For more information and instructions, see our Unified Payments Apps article.

Apple Pay credentials

To integrate with Apple Pay, you’ll need to obtain the encrypted payment credentials. To do this, follow the steps in the applicable Apple guide below:

• In-app - Apple Pay PassKit
• In-browser - Apple Pay on the Web

For more Apple Pay setup information, see our Apple Pay article.

Configuration

To configure this plugin, follow these steps.

1. Log in to the Admin panel for WooCommerce.
2. Navigate to WooCommerce > Settings > Payments.
3. From here, you can click Manage to configure the Unified Payments gateway as well as the various payment methods supported by WooCommerce.
   Note: If this is your first time activating this plugin, the Settings page will appear first.

Settings

The Unified Payments gateway offers payment through credit and debit cards. Additional payment methods like Digital Wallets (Google Pay, Apple Pay, and PayPal), Buy Now Pay Later (Affirm, Clearpay, and Klarna), and Bank Payment can be enabled via the Unified Payments gateway.

Unified Payments settings

The Unified Payments Settings tab allows you to enter your overall account credentials.

1. Navigate to WooCommerce > Settings > Payments.
2. Use the toggle under Enabled to select the Unified Payments gateway.
   Note: If this is your first time activating this plugin, the Settings page will appear.
3. If you already enabled the plugin and want to change the settings, click Manage.

The following table describes the fields that appear on the Unified Payments Settings tab for WooCommerce.

Google Pay settings

The Google Pay Settings tab allows you to enter your overall account credentials. The following table describes the fields that appear on the Google Pay Settings tab for WooCommerce.

Apple Pay settings

The Apple Pay Settings tab allows you to enter your overall account credentials. The following table describes the fields that appear on the Apple Pay Settings tab for WooCommerce.

PayPal settings

The Affirm Settings tab allows you to enter your overall account credentials. The following table describes the fields that appear on the Settings tab.

Clearpay settings

The Clearpay Settings tab allows you to enter your overall account credentials. The following table describes the fields that appear on the Clearpay Settings tab for WooCommerce.

Klarna settings

The PayPal Settings tab allows you to enter your overall account credentials. The following table describes the fields that appear on the Settings tab.

Affirm settings

The Klarna Settings tab allows you to enter your overall account credentials. The following table describes the fields that appear on the Settings tab.

Bank Payment settings

The Bank Payment Settings tab allows you to enter your overall account credentials. The following table describes the fields that appear on the Settings tab.

Step 2: Test integration

Use the test card numbers below to verify that your integration was set up properly. For testing, you can use any cardholder name, any expiry date in the future, and any CVN security code.

For a full list of test cards, see our Test Cards article.

Step 3: Going live

Now that you’ve successfully installed the plugin and tested to see if it was installed properly, you’re all set to go live in the Production environment. For more information, see our Integration Validation to Go Live article.

Connect your integration for Production:

• Input your Production App Id / App Key into your gateway configuration in the WooCommerce Admin panel, and enable the “Live Mode” for the Unified Payments  gateway.

Go to Production with Google Pay:

• This gateway shares the Sandbox/Production mode with the Unified Payments gateway.
• Process test transactions:
  • Google does not offer test cards, so you’ll have to use real ones.
  • In Sandbox mode, our gateway allows only specific order amount values; all other values will be automatically declined. You can check the allowed values in the Google Pay section of our Test Cards article.

Go to Production with Apple Pay:

• This gateway shares the Sandbox/Production mode with the Unified Payments gateway.
• Process test transactions:
  • You first need to configure a Sandbox account for Apple. For information on how to create a Sandbox account and test cards, see the Apple’s Sandbox Testing article.
  • In Sandbox mode, our gateway allows only specific order amount values; all other values will be automatically declined. You can check the allowed values in the Apple Pay section of our Test Cards article.

Go to Production with PayPal

• This payment method shares the Sandbox/Production mode with the Unified Payments gateway.
• Process test transactions:
  • Contact the Unified Payments team and ask them to enable PayPal for your current account (see Integration Support).
  • Once you get redirected to the PayPal payment page, create an account and process different transactions.

Going to Production with Affirm:

• This payment method shares the Sandbox/Production mode with the Unified Payments gateway.
• Process test transactions:
  • Contact the Unified Payments team and ask them to enable Buy Now Pay Later for your current account (see Integration Support).
  • This payment method will be displayed at checkout only for the following currency - country cases: USD - US and CAD - CA.
  • Once you get redirected to the Affirm payment page, create an account and process different transactions.

Going to Production with Clearpay:

• This payment method shares the Sandbox/Production mode with the Unified Payments gateway.
• Process test transactions:
  • Contact the Unified Payments team and ask them to enable Buy Now Pay Later for your current account (see Integration Support).
  • This payment method will be displayed at checkout only for the following currency - country cases: USD - US, CAD - CA, GBP - GB, AUD - AU, and NZD - NZ.
  • Once you get redirected to the Clearpay payment page, create an account and process different transactions.

Going to Production with Klarna:

• This payment method shares the Sandbox/Production mode with the Unified Payments gateway.
• Process test transactions:
  • Contact the Unified Payments team and ask them to enable Buy Now Pay Later for your current account (see Integration Support).
  • This payment method will be displayed at checkout only for the following currency - country cases: USD - US, CAD - CA, GBP - GB, AUD - AU, NZD - NZ, EUR - AT, EUR - BE, EUR - DE, EUR - ES, EUR - FI, EUR - FR, EUR - IT, EUR - NL, CHF - CH, DKK - DK, NOK - NO, PLN - PL, and SEK - SE.
  • Once you get redirected to the Klarna payment page, create an account and process different transactions.

Go to Production with Bank Payment

• This payment method shares the Sandbox/Production mode with the Unified Payments gateway.
• Process test transactions:
  • Contact the Unified Payments team and ask them to enable Open Banking for your current account (see Integration Support).
  • Once you get redirected to the Bank Payment payment page, create an account and process different transactions.

Additional information

This section contains information on payment solutions such as Hosted Fields and Hosted Payment Page, risk management solutions such as 3D Secure, as well as enhanced features such as Card Management and Order Management.

For the Buy Now Pay Later payment methods (Affirm, Clearpay, and Klarna), additional information on checkout flow can be found in the Async Payment Methods section.

Hosted Fields

For information on our PCI DSS requirement-reducing hosted solution, Hosted Fields (Drop-In UI), see our Hosted Fields - Overview page.

Hosted Payment Page

For information on our Hosted Payment Page for Unified Payments REST API integrators, see our Hosted Payment Page - Overview page.

3D Secure

For information on our 3D Secure solutions, see our 3D Secure - Overview page. We provide a Simulator Issuer Access Control Server that allows you to test different 3D Secure scenarios. For more information, see the 3D Secure section of our Test Cards article.

Card Management

Registered customers can save their card information by selecting the “Save to account” checkbox in the checkout form. The WooCommerce plugin securely stores card data with us and receives a token representation of the card, which is stored in the WooCommerce vault, with no increased PCI compliance requirements.

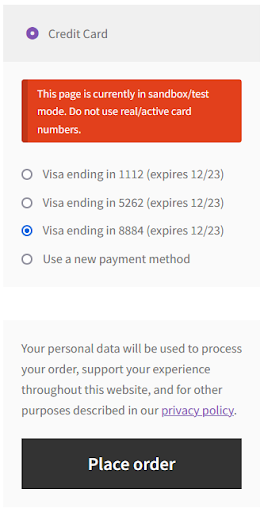

1. The customer can choose from the list of their stored cards.

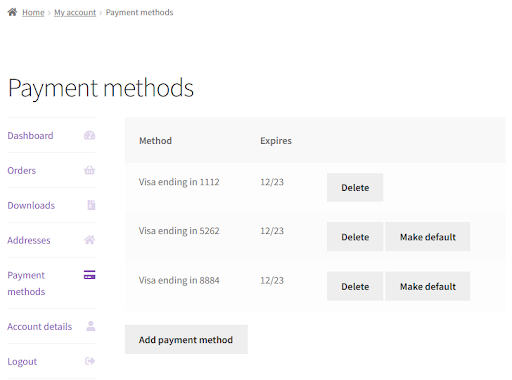

2. Registered customers can see the list of their stored cards under My Account > Payment Methods.

3. Registered customers can add new payment methods by navigating to My Account > Payment Methods > Add Payment Method. A validation of the payment method is done to ensure it can be used to create a transaction at a later time and the card data is received through Hosted Fields.


Order Management

Detailed information relating to the transaction outcome is available in the Orders section for WooCommerce.

Capture a transaction

Merchants who use “Authorize only” at checkout will authorize the funds on the customer's card, but the transaction won't be placed in the settlement file until We capture it. The amount of time the funds can remain ring-fenced on the customer's card may vary between different Issuers and Acquirers. Card brands like Visa and Mastercard have their own rules around how long transactions can wait to be captured.

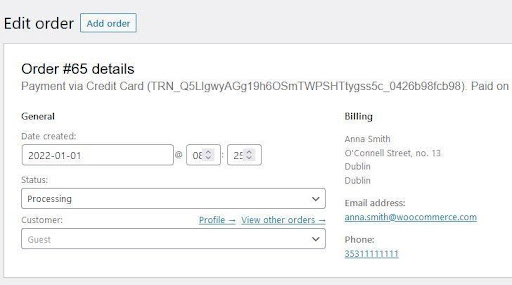

1. You can view the Transaction ID returned by us under the order details.

2. If successfully authorized, the funds will be ring-fenced on the customer's account. When you want to include the transaction in the next settlement file (also known as a batch), you can simply send a Capture (Settle) request. When the transaction is captured with the Acquirer, the funds are deducted from the customer's account and settled into the merchant's account.
3. To capture a transaction, on the right-hand menu, go to Order actions. Select Capture credit card authorization to send the request to us.

4. When finished, click Update. A Capture request with the total amount authorized will now be sent.

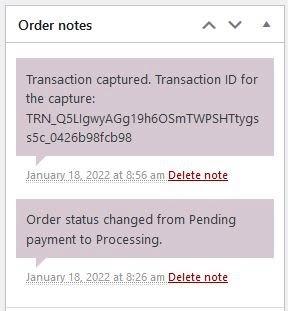

5. Once complete, the result of the Settle request will be displayed as a comment in the Order notes. For example: Transaction captured. Transaction ID for the capture: TRN_Q5LIgwyAGg19h6OSmTWPSHTtygss5c_0426b98fcb98).


Refund a captured transaction

Once an order is successfully settled with your Acquirer, you can rebate the customer for 0% to 115% of the original order value. To do this, you must do a Refund in WooCommerce.

1. Navigate to WooCommerce > Orders, and select the order you want to rebate.

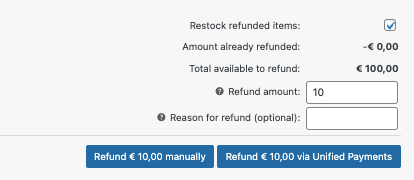

2. You can edit the amount to rebate by editing the adjustment fields provided by WooCommerce.

3. Once complete, the result of the Refund request will be displayed as a comment in the Order notes. For example: €10.00 was reversed or refunded. Transaction ID: TRN_USaGaxBIRCQajDlqcqPolBkUwfRAL4_0426b98fcb98.

Async Payment Methods

Because these payment methods are handled by third-party services and require further processing from these third parties, the checkout flow has some differences compared with the Unified Payments or Digital Wallets ones.

Initiate the payment

1. When a customer clicks the Place Order button, the order is placed with a “Waiting for payment” status.
2. Once the order has been created, an Initial Payment request type will occur.

Redirect to third-party service

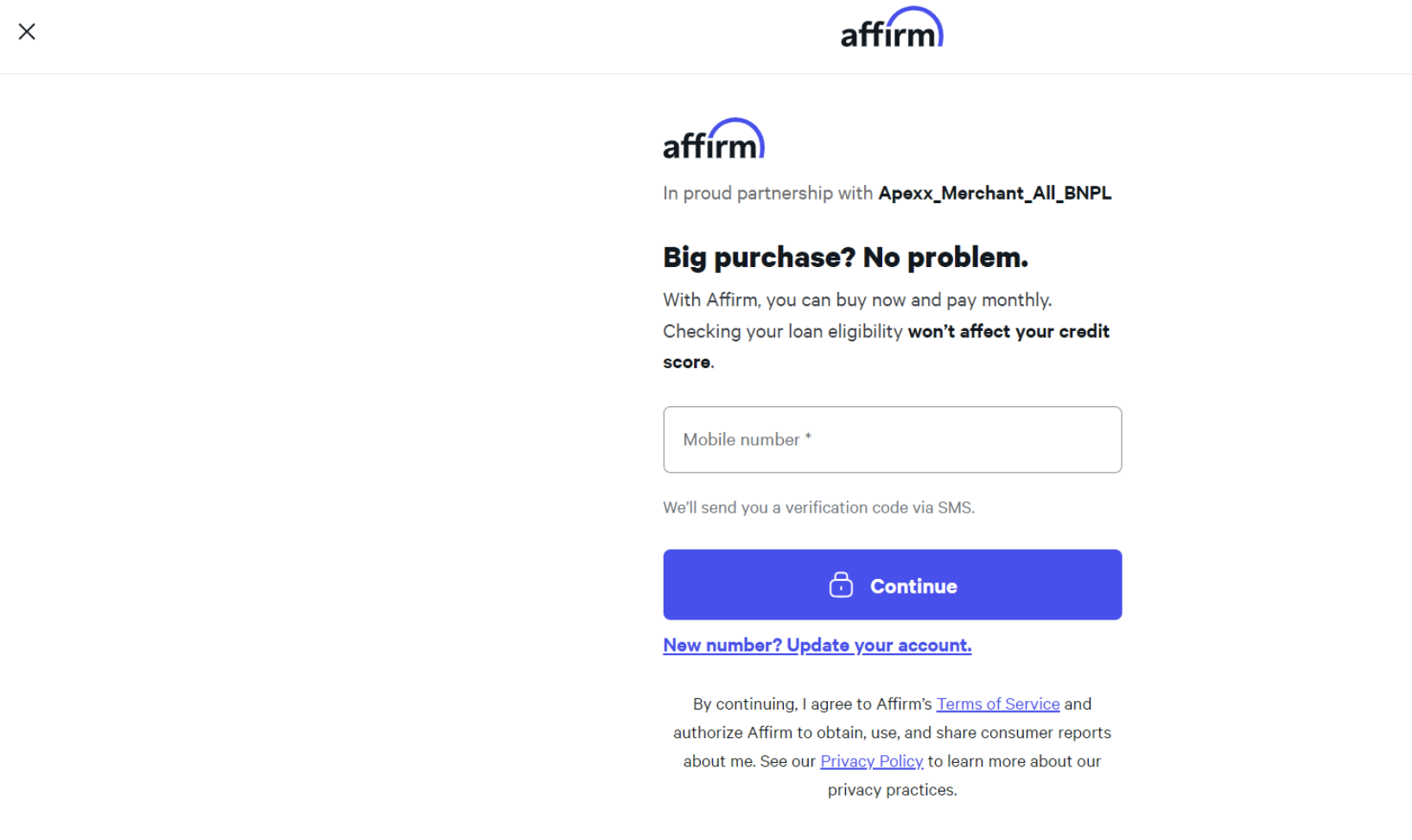

If the Initiate Payment request is successful, the customer will be redirected to the third-party service to pay.

Redirect back to your website

Cancel the payment

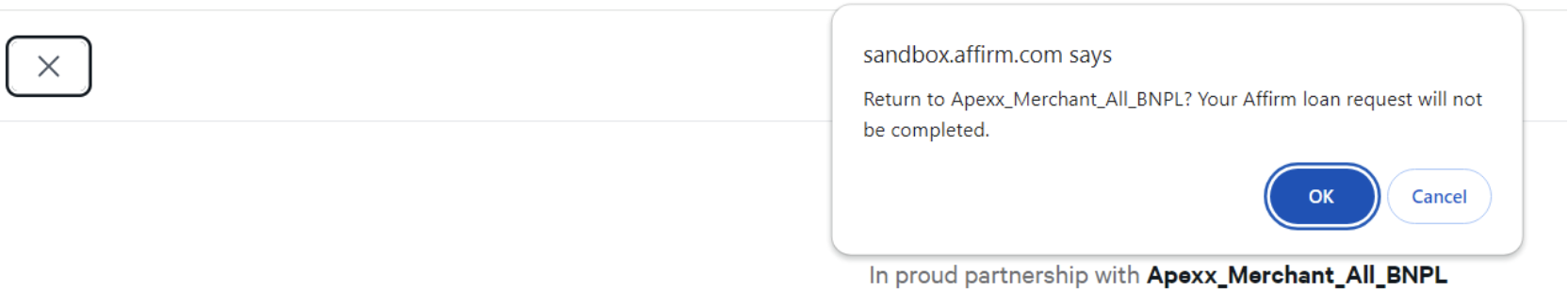

1. If the customer decides to cancel the payment using the option provided by the third-party service (for example, clicking the X button on top left of the screen), they will be redirected to the cart page and the order that was previously created will be canceled.

2. The order canceling will not be processed in your website if the customer decides to leave the page using another option (for example, browser back button, browser X button, or closing the tab); therefore, the order will still have the “Waiting for payment” status in these cases.

Successfully completing the payment

1. If the customer successfully completes the payment, they will be redirected to the success page.
2. At this point, the order will still have a Pending Payment status. For more details, see the next section.

Receiving the final payment status

1. Because these payment methods are asynchronous, the final transaction status might not be available immediately.
2. Once our system gets the final status, it will notify your website.
3. At that point, the order status will be changed to Processing.

‘Waiting for payment’ orders

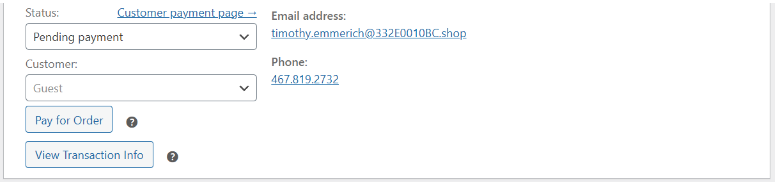

1. In cases where the orders are stuck in a Pending Payment status, we provide a View Transaction Info button.

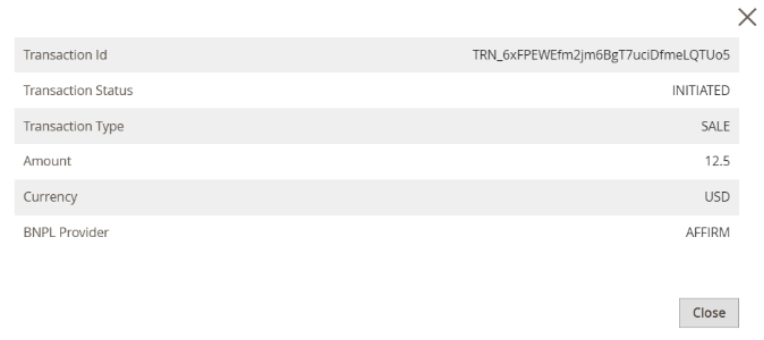

2. Clicking View Transaction Info fetches all the information about the current transaction and displays it in a pop-up window.

3. Based on the Transaction Status, you can manually cancel the order or just continue with the normal flow.
