3D Secure

See the full range of request types and field values for this solution

To integrate with 3D Secure 2, you can use our JavaScript Library and one of our server-side SDKs to get started quickly with an end-to-end authentication flow. For more information, see our 3D Secure & SCA - Overview page. Alternatively, you can connect directly to the JSON API with your own client-side implementation.

In this API reference, we present an overview of each request type, examples of request and response values, as well as how to handle them.

The code samples used throughout this article are simple examples and should not be used as Production-ready code.

3D Secure 2 endpoint URLs:

Production: https://api.globalpay-ecommerce.com

Sandbox: https://api.sandbox.globalpay-ecommerce.com

Notification URLs

Before testing or implementing 3D Secure 2, you first need to set up and configure endpoints in your application or website that will receive data and event notifications from the Issuer’s Access Control Server (ACS). Each endpoint must be configured to accept an HTTP POST with Base64url encoded values. The Issuer’s ACS uses notifications in two important ways during authentication:

3DS Method Completion - Informs your application or website that the ACS completed device profiling of the browser (see the conditional ACS Method URL step below). The Method POST simply contains our unique identifier for the 3D Secure authentication (Server Transaction ID).
ACS Challenge Completion - Informs your application or website that the challenge presented to the customer is complete. The POST also contains key authentication data, including whether the customer authenticated successfully or not (see the Obtain Authentication Data step below).

In the following examples, the endpoints are received in the response from the checkEnrollment step (for method notification) and initiateAuthentication step (for challenge notification) and are initiated on the client side.

Sample method notification endpoint

curl --location --request POST 'https://test.portal.gpwebpay.com/pay-sim/sim/acs' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--data-urlencode 'threeDSMethodData=ewogICJ0aHJlZURTU2VydmVyVHJhbnNJRCIgOiAiNWVmZjliMDAtZjg5ZC00NmQ4LWJmNTktM2I0YTBmYWE0YTFhIiwKICAidGhyZWVEU01ldGhvZE5vdGlmaWNhdGlvblVSTCIgOiAiaHR0cHM6Ly9ncHRlc3RjYXJ0cy5zd2VkZW5jZW50cmFsLmNsb3VkYXBwLmF6dXJlLmNvbS9pbmRleC5waHA_cm91dGU9ZXh0ZW5zaW9uL3BheW1lbnQvZ2xvYmFscGF5bWVudHNfdWNwL3RocmVlRFNlY3VyZU1ldGhvZE5vdGlmaWNhdGlvbiIKfQ'

Sample challenge notification endpoint

curl --location --request POST 'https://acs2p.test.gpe.cz/tds/challenge/brw/f5f40230-f072-41ec-8c14-436a79982818' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--data-urlencode 'creq=ewogICJtZXNzYWdlVHlwZSIgOiAiQ1JlcSIsCiAgIm1lc3NhZ2VWZXJzaW9uIiA6ICIyLjEuMCIsCiAgInRocmVlRFNTZXJ2ZXJUcmFuc0lEIiA6ICJhMTgyNTVjMi04ZjQ0LTRkNWItYmM2ZC1kYTgxMzI0MTU3OGMiLAogICJhY3NUcmFuc0lEIiA6ICJmNWY0MDIzMC1mMDcyLTQxZWMtOGMxNC00MzZhNzk5ODI4MTgiLAogICJjaGFsbGVuZ2VXaW5kb3dTaXplIiA6ICIwMyIKfQ'

Gather Device Data

In the first request to initiate 3D Secure 2 (Initiate Authentication), in addition to customer billing/shipping details and transaction information we must also provide browser data. You can gather this data independent of the 3D Secure authentication process, for example as soon as the customer lands on your website.

Some devices may return a color depth that is not in the list of accepted values. In this scenario the EMVCo. recommendation is to submit the closest lower value. For example, if the color depth returned by the browser is 30, submit 24 as this is the closest lower value.

In our examples below, we’re gathering as much data as we can on the client-side using JavaScript. For some of the variables (browserLanguage, userAgent and timeZoneOffSet) you could also use server-side methods.

Client-side sample

function gatherBrowserData() {
  var colorDepth = screen.colorDepth; // 24
  var javaEnabled = navigator.javaEnabled(); // true
  var browserLanguage = navigator.language; // en_US
  var screenHeight = screen.height; // 1080
  var screenWidth = screen.width; // 1920
  var userAgent = navigator.userAgent;
  // Mozilla/5.0 (Windows NT 6.1; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/70.0.3538.110 Safari/537.36

  var browserTime = new Date();
  var browserTimezoneZoneOffset = browserTime.getTimezoneOffset(); // 0
}

Check version

To kick off the 3D Secure authentication process, the first step is to check the version that the card supports. We maintain an up-to-date database of BIN ranges and the versions of 3D Secure they support.

If the card is enrolled in 3D Secure 2, the exact version will be returned (2.x.x) along with the necessary URL to facilitate the gathering of device data by the Issuer ACS (if supported). If the card is not enrolled, the only value returned will be enrolled = false.

Sample request

curl https://api.sandbox.globalpay-ecommerce.com/3ds2/protocol-versions
-H "Content-type: application/json"
-H "X-GP-VERSION: 2.2.0"
-H "Authorization: securehash 0204a841510d67a46fbd305a60253d7bade32c6e"
-X POST
-d '{
   "request_timestamp": "2019-07-30T08:41:07.590604",
   "merchant_id": "MerchantId",
   "account_id": "internet",
   "number": "4263970000005262",
   "scheme": "VISA",
   "method_notification_url": "https://www.example.com/dsNotificationUrl"
}'

Request syntax

Type indicates whether the element is Mandatory (M), Optional (O), or Conditional (C) - dependent on another field.

Unless otherwise stated in the description, the allowed special characters in an alphanumeric string field are [/.-_‘,␣]

Element/Field	Category	Format	Type	Length	Description
X-GP-Version	string	numeric	M	5	The specific version of 3D Secure 2 to use. The value submitted determines the request and response value the 3D Secure 2 solution will accept and return. We recommend that all merchants use version 2.2.0
Timestamp	timestamp	numeric	M	24-32	The timestamp of the request. Minimum of 3 microseconds precision, can be up to 6. Format: yyyy-MM-ddTHH:mm:ss.SSS
Merchant ID	string	alphanumeric	M	1-50	Your Client ID assigned by us. Allowed characters: [a-zA-Z0-9.]
Account	string	alphanumeric	O	0-30	The sub-account for this request to be processed through. Allowed characters: [a-zA-Z0-9.]
Card Number	string	numeric	M	12-19	The full Primary Account Number (PAN) of the card.
Card Scheme	string	enum	M	N/A	The type of card. Allowed values: VISA MASTERCARD AMEX DINERS DISCOVER JCB European merchants: mandatory for SCA.
Method Notification URL	string	URL	M	1-256	The URL that will receive the Method Completion message. European merchants: mandatory for SCA.

Sample response

{
   "server_trans_id": "af65c369-59b9-4f8d-b2f6-7d7d5f5c69d5",
   "enrolled": true,
   "ds_protocol_version_start": "2.1.0",
   "ds_protocol_version_end": "2.2.0",
   "acs_protocol_version_start": "2.1.0",
   "acs_protocol_version_end": "2.2.0",
   "acs_info_indicator": [
    "AUTHENTICATION_AVAILABLE_AT_ACS", "DECOUPLED_AUTHENTICATION_SUPPORTED"
   ],
   "method_url": "https://test.portal.gpwebpay.com/pay-sim-gpi/sim/acs",
   "method_data": {
      "three_ds_server_trans_id": "af65c369-59b9-4f8d-b2f6-7d7d5f5c69d5",
      "three_ds_method_notification_url": "https://www.example.com/dsNotificationUrl",
      "encoded_method_data": "eyJ0aHJlZURTTWV0aG9kTm90aWZpY2F0aW9uVVJMIjoiaHR0cHM6XC9cL3d3dy5leGFtcGxlLmNvbVwvbm90aWZpY2F0aW9uVXJsIiwidGhyZWVEU1NlcnZlclRyYW5zSUQiOiJhZjY1YzM2OS01OWI5LTRmOGQtYjJmNi03ZDdkNWY1YzY5ZDUifQ"
   }
}

Response syntax

Element/Field	Category	Format	Description
Server Transaction ID	string	alphanumeric	Unique identifier for the authentication in our 3DS solution (3DS server). Must be used for all requests.
Enrolled	boolean		Indicates whether the card is enrolled for 3D Secure 2.
Directory Server (DS) Start Protocol Version	string	numeric	The version range supported by the Directory Server (Card Scheme).
Directory Server (DS) End Protocol Version	string	numeric	The version range supported by the Directory Server (Card Scheme).
Access Control Server (ACS) Start Protocol Version	string	numeric	The version range supported by the Access Control Server (Issuer).
Access Control Server (ACS) End Protocol Version	string	numeric	The version range supported by the Access Control Server (Issuer).
ACS Information Indicator	string	enum	Identifies the 3D Secure 2 features that the ACS supports, for example, Whitelisting or Decoupled Authentication. Possible values: NOT_AVAILABLE AUTHENTICATION_AVAILABLE_AT_ACS ATTEMPTS_SUPPORTED_BY_ACS DECOUPLED_AUTHENTICATION_SUPPORTED WHITELISTING_SUPPORTED SCHEME_INFO_INDICATOR_##
Method URL	string	Standard URL	The URL to facilitate the ACS gathering device data. If the ACS does not support this functionality, this field will not be returned.
Method Data	string	alphanumeric	JSON object containing the Encoded Method Data. This is a Base64Url encoded string made up of the Method Notification URL and the Server Transaction ID which must be sent to the Method URL.

ACS Method URL [Conditional]

If the Issuer ACS supports gathering of device data, in the response to the version check the ACS Method URL will be returned. On the client-side we need to open a hidden iFrame targeting the 3DS ACS Method URL and POST the 3DS Method Data object to it.

The 3DS Method Data object is a Base64url encoded JSON object containing the Server Transaction ID and your Method Notification URL. This was returned in the response to the 3D Secure version check in Step 3.

In the event of the Issuer ACS not supporting device data, no Method URL will be returned and you can move onto the next step while setting the 3DS Method Completion Indicator as Unavailable.

Client-side sample

<!DOCTYPE html>
<html>

<head>
	<meta charset="ISO-8859-1">
	<title>Sample Open Method URL Page</title>
</head>

<body>
	<iframe id="hidden_iframe" name="hidden_iframe" style="display: none;"></iframe>
</body>
<script>
	var form = document.createElement("form");
         form.setAttribute("method", "POST");
         form.setAttribute("action", "https://www.acsurl.com/method");
         form.setAttribute("target", "hidden_iframe");

         var threeDSMethodData = document.createElement("input");
         threeDSMethodData.setAttribute("type", "hidden");
         threeDSMethodData.setAttribute("name", "threeDSMethodData");
         // add the JSON object returned by Global Payments
         threeDSMethodData.setAttribute("value", threeDSmethodDataObject);
         form.appendChild(threeDSMethodData);
         document.body.appendChild(form);

         form.submit();

</script>

</html>

If the ACS Method URL successfully gathers the device information, in the iFrame it will send a form POST and redirect the browser to your Notification URL. Your client-side code will be able to detect the redirection and close the hidden iFrame accordingly. Collection of device data should complete in seconds, allowing your application to proceed to the next step, setting the 3DS Method Completion Indicator to true.

If gathering the device information is not successful, the maximum timeout set by the ACS is 10 seconds. However, you may wish to proceed to the next step sooner than that. In this case your application should close the iFrame within your determined time frame (for example, 3 seconds) and set the 3DS Method Completion Indicator to False in the next request.

Initiate Authentication

Assuming you have already gathered the relevant device data and (conditionally) the ACS Method URL process is complete, your application can now kick-off 3D Secure 2 authentication. We’ve outlined below the required and recommended data to be sent in the POST to the authentication endpoint. This includes the billing and shipping details of the customer, at least one phone number, the device data and the transaction details (amount, currency and so on).

You must also include your application’s Challenge Notification URL, a flag indicating the outcome from the ACS Method URL (or whether it took place at all) and a link to an About or Contact page on your website with customer care information.

Exemptions

One of the key advantages of 3D Secure 2 is that it provides a framework for merchants to benefit from SCA exemptions under certain conditions. The idea behind these exemptions is to allow for the development of a user-friendly payment experience in circumstances where the risk is low.

Exemptions may be applied by the Issuer based on the transaction details or may be specifically requested by the merchant, with their Acquirer’s permission. In the authentication message you can request an exemption by including it in the Challenge Request Indicator field (see note below).

For more information on the available exemptions requests and when to use them, please refer to our dedicated article.

When a merchant requests an exemption they will no longer be able to avail of a liability shift in the event of a chargeback.

For Mastercard exemption requests, please also refer to our Mastercard Message Extension documentation.

Sample request (mandatory & recommended fields)

In this example, we’re only passing mandatory fields along with some recommended ones. The more optional fields you send and data you supply, the more likely the authentication for the transaction will be frictionless. For the full list of optional fields and the allowed values in each, please see the section below.

curl https://api.sandbox.globalpay-ecommerce.com/3ds2/authentications
-H "Content-type: application/json"
-H "X-GP-VERSION: 2.2.0"
-H "Authorization: securehash abafc599cfa60c94b8f41d0668dac5ed6b0a21f7"
-X POST
-d '{
   "request_timestamp": "2019-07-30T08:52:44.991911",
   "authentication_source": "BROWSER",
   "authentication_request_type": "PAYMENT_TRANSACTION",
   "message_category": "PAYMENT_AUTHENTICATION",
   "message_version": "2.2.0",
   "challenge_request_indicator":"NO_PREFERENCE",
   "server_trans_id": "ad0fffeb-bfff-44d0-881f-b857fe77c5a2",
   "merchant_id": "MerchantId",
   "account_id": "internet",
   "card_detail": {
      "number": "4263970000005262",
      "scheme": "VISA",
      "expiry_month": "10",
      "expiry_year": "25",
      "full_name": "James Mason"
   },
   "order": {
      "date_time_created": "2019-04-26T10:19:32.552327Z",
      "amount": "1001",
      "currency": "EUR",
      "id": "3400dd37-101d-4940-be15-3c963b6109b3",
      "address_match_indicator": "false",
      "shipping_address": {
         "line1": "Apartment 852",
         "line2": "Complex 741",
         "line3": "House 963",
         "city": "Chicago",
         "postal_code": "50001",
         "state": "IL",
         "country": "840"
      }
   },
   "currency_conversion": {
      "payer_amount": "57600",	//CustomerChosenCurrencyAmount
      "payer_currency": "USD"	//CustomerChosenCurrency
   "payer": {
      "email": "james.mason@example.com",
      "billing_address": {
         "line1": "Flat 456",
         "line2": "House 456",
         "line3": "Unit 4",
         "city": "Halifax",
         "postal_code": "W5 9HR",
         "country": "826"
      },
      "mobile_phone": {
         "country_code": "44",
         "subscriber_number": "7123456789"
      }
   },
   "challenge_notification_url": "https://www.example.com/challengeNotificationUrl",
   "method_url_completion": "YES",
   "browser_data": {
      "accept_header": "text/html,application/xhtml+xml,application/xml;q=0.9,image/webp,image/apng,*/*;q=0.8",
      "color_depth": "TWENTY_FOUR_BITS",
      "ip": "123.123.123.123",
      "java_enabled": "true",
      "javascript_enabled": "true",
      "language": "en-US",
      "screen_height": "1080",
      "screen_width": "1920",
      "challenge_window_size": "FULL_SCREEN",
      "timezone": "0",
      "user_agent": "Mozilla/5.0 (Windows NT 6.1; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/70.0.3538.110 Safari/537.36"
   },
   "merchant_contact_url": "https://www.example.com/about"
}'

Request syntax

Element/Field	Category	Format	Type	Length	Description
X-GP-Version	string	numeric	M	5	The specific version of 3D Secure 2 to use. The value submitted determines the request and response value the 3D Secure 2 solution will accept and return. We recommend that all merchants use version 2.2.0
Timestamp	timestamp	numeric	M	24-32	The timestamp of the request. Minimum of 3 microseconds precision, can be up to 6. Format: yyyy-MM-ddTHH:mm:ss.SSS
Merchant ID	string	alphanumeric	M	1-50	Your Client ID assigned by us. Allowed characters: [a-zA-Z0-9.]
Account	string	alphanumeric	O	0-30	The sub-account for this request to be processed through. Allowed characters: [a-zA-Z0-9.]
Authentication Source	string	enum	M	N/A	Indicates the type of channel used to initiate the transaction. Allowed Values: BROWSER MERCHANT_INITIATED MOBILE_SDK European merchants: required for SCA.
Authentication Request Type	string	enum	M	N/A	Indicates the type of channel used to initiate the transaction. Allowed Values: PAYMENT_TRANSACTION RECURRING_TRANSACTION INSTALMENT_TRANSACTION ADD_CARD MAINTAIN_CARD CARDHOLDER_VERIFICATION European merchants: required for SCA.
Message Category	string	enum	M	N/A	Indicates the type of channel used to initiate the transaction. Allowed Values: PAYMENT_AUTHENTICATION NON_PAYMENT_AUTHENTICATION - non payment activity such as adding or maintaining cards or card verification (OTB). European merchants: required for SCA.
Challenge Request Indicator	string	enum	O	N/A	Indicates whether a challenge is requested for this transaction. The Issuer may override whatever preference is specified in this field. Allowed values: NO_PREFERENCE - No preference as to whether the customer is challenged - Preference is for the customer not to be challenged. - Preference is for the customer to be challenged. - A challenge is required for the transaction to be authorized due to local/regional mandates or other variables. European merchants: optional for SCA.

Optional Fields

3D Secure 2 allows submission of a much greater data set than its predecessor, the more data submitted the more information the Issuer will have when making the decision whether the transaction authentication should proceed through a Frictionless or a Challenge flow.

The types of data available to submit include:

Customer account with the merchant (creation date and history)
Gift card
Recurring and installment information
Prior 3D Secure 2 authentication
Merchant authentication of the customer

{
   "merchant_initiated_request_type": "RECURRING_TRANSACTION",
   "card_detail": {
      "first_name": "James",
      "last_name": "Mason"
   },
   "order": {
      "gift_card_count": "01",
      "gift_card_currency": "EUR",
      "gift_card_amount": "25000",
      "delivery_email": "james.mason@example.com",
      "delivery_timeframe": "ELECTRONIC_DELIVERY",
      "shipping_method": "ANOTHER_VERIFIED_ADDRESS",
      "shipping_name_matches_cardholder_name": "true",
      "preorder_indicator": "MERCHANDISE_AVAILABLE",
      "preorder_availability_date:": "2019-04-18",
      "reorder_indicator": "FIRST_TIME_ORDER",
      "transaction_type": "GOODS_SERVICE_PURCHASE"
   },
   "payer": {
      "id": "6dcb24f5-74a0-4da3-98da-4f0aa0e88db3",
      "account_age": "LESS_THAN_THIRTY_DAYS",
      "account_creation_date": "2019-01-10",
      "account_change_date": "2019-01-28",
      "account_change_indicator": "THIS_TRANSACTION",
      "account_password_change_date": "2019-01-15",
      "account_password_change_indicator": "LESS_THAN_THIRTY_DAYS",
      "home_phone": {
         "country_code": "44",
         "subscriber_number": "123456789"
      },
      "work_phone": {
         "country_code": "44",
         "subscriber_number": "1801555888"
      },
      "payment_account_creation_date": "2019-01-01",
      "payment_account_age_indicator": "LESS_THAN_THIRTY_DAYS",
      "suspicious_account_activity": "NO_SUSPICIOUS_ACTIVITY",
      "purchase_count_last_6months": "03",
      "transaction_count_last_24hours": "01",
      "transaction_count_last_year": "05",
      "provision_attempt_count_last_24hours": "01",
      "shipping_address_creation_date": "2019-01-28",
      "shipping_address_creation_indicator": "THIS_TRANSACTION"
   },
   "payer_prior_three_ds_authentication_data": {
      "authentication_method": "FRICTIONLESS_AUTHENTICATION",
      "acs_transaction_id": "26c3f619-39a4-4040-bf1f-6fd433e6d615",
      "authentication_timestamp": "20190110125733",
      "authentication_data": "string"
   },
   "recurring_authorization_data": {
      "max_number_of_instalments": "05",
      "frequency": "25",
      "expiry_date": "2019-08-25"
   },
   "payer_login_data": {
      "authentication_data": "string",
      "authentication_timestamp": "2019-01-28",
      "authentication_type": "MERCHANT_SYSTEM_AUTHENTICATION"
   },
   "decouple_flow_request":"DO_NOT_USE_DECOUPLED",
   "decouple_flow_timeout":"40",
   "whitelist_status":"NOT_WHITELISTED"
}

Request syntax

Type indicates whether the element is Mandatory (M), Optional (O), or Conditional (C) - dependent on another field.

Unless otherwise stated in the description, the allowed special characters in an alphanumeric string field are [/.-_‘,␣]

Element/Field	Category	Format	Type	Length	Description
Merchant Initiated Request Type	string	enum	C	N/A	For merchant initiated transactions (3RI) informs the ACS of the transaction type. Allowed values: RECURRING_TRANSACTION, INSTALMENT_TRANSACTION ADD_CARD MAINTAIN_CARD_INFORMATION ACCOUNT_VERIFICATION SPLIT_OR_DELAYED_SHIPMENT TOP_UP MAIL_ORDER TELEPHONE_ORDER WHITELIST_STATUS_CHECK OTHER_PAYMENT BILLING_AGREEMENT European merchants: mandatory for SCA if the transaction is merchant initiated (3RI).
Cardholder First Name	string	alphanumeric	M	2-22	First name of the cardholder. Will be concatenated with last_name with a space. Allowed special characters: [.-'␣] European merchants: mandatory for SCA if the full_name field is not submitted in the request.
Cardholder Last Name	string	alphanumeric	M	2-22	Last name of the cardholder. Will be concatenated with first_name with a space. Allowed special characters: [.-'␣] European merchants: mandatory for SCA if the full_name field is not submitted in the request.
Gift Card Count	integer		O	0-2	The total number of prepaid or gift cards purchased. European merchants: optional for SCA.
Gift Card Currency	string	ISO 4217	O	0-3	The currency code of prepaid or gift cards purchased. For example, Euro should be submitted as EUR. European merchants: optional for SCA.
Gift Card Amount	integer		O	0-15	The total amount of prepaid or gift cards purchased. Format: major units, for example, USD 123.45 = 123. European merchants: optional for SCA.
Delivery Email	string	alphanumeric	C	0-254	For ELECTRONIC_DELIVERY, the email address to which the merchandise was delivered. The field must be submitted in the form name@host.domain (for example, ). European merchants: optional for SCA.

Authentication flows

At this point the Issuer will analyze the transaction. It will take into account factors such as the data your application has provided along with historical customer behavior and transaction analysis. The outcome of this process will determine whether the Issuer decides that the customer must further authenticate the transaction; a Challenge Flow.

Alternatively, they can be satisfied that they have enough data to make a decision on whether the transaction should proceed or not and that no further authentication is required; a Frictionless flow.

Frictionless flow

In a frictionless flow the Issuer can determine that no challenge is required to authenticate the transaction. Or that based on the information it has received so far, that the transaction should not proceed any further. For European merchants and transactions in scope of PSD2, the Issuer will also check that a valid exemption can be applied.

Depending on the outcome and the relevant ECI value, your application can now either proceed to authorization or display a message to the customer telling them their transaction was unsuccessful and return them to the payment page.

Successful authentication response

{
    "server_trans_id": "ad0fffeb-bfff-44d0-881f-b857fe77c5a2",
    "acs_trans_id": "13c701a3-5a88-4c45-89e9-ef65e50a8bf9",
    "ds_trans_id": "c272b04f-6e7b-43a2-bb78-90f4fb94aa25",
    "authentication_value": "ODQzNjgwNjU0ZjM3N2JmYTg0NTM=",
    "eci": "05",
    "acs_rendering_type": {},
    "status": "AUTHENTICATION_SUCCESSFUL",
    "status_reason": "LOW_CONFIDENCE",
    "authentication_source": "BROWSER",
    "message_category": "PAYMENT_AUTHENTICATION",
    "message_version": "2.2.0",
    "message_extension": [
        {
            "name": "Sample Extension",
            "id": "B000000009-sampleExtension",
            "criticality_indicator": "false",
            "data": {
                "B000000009-sampleExtension": {
                    "sampleData": "sampleValue"
                }
            }
        }
    ],
    "acs_reference_number": "3DS_LOA_ACS_201_13579",
    "whitelist_status": "PENDING_CARDHOLDER_CONFIRMATION"
}

Failed authentication response

{
    "server_trans_id": "af65c369-59b9-4f8d-b2f6-7d7d5f5c69d5",
    "acs_trans_id": "13c701a3-5a88-4c45-89e9-ef65e50a8bf9",
    "ds_trans_id": "c272b04f-6e7b-43a2-bb78-90f4fb94aa25",
    "authentication_value": "ODQzNjgwNjU0ZjM3N2JmYTg0NTM=",
    "eci": "07",
    "status": "AUTHENTICATION_FAILED",
    "status_reason": "CARD_AUTHENTICATION_FAILED",
    "authentication_source": "BROWSER",
    "cardholder_response_info": "Additional authentication is needed for this transaction, please contact [Issuer Name] at 123-456-7890",
    "message_category": "PAYMENT_AUTHENTICATION",
    "message_version": "2.2.0",
    "message_extension": [
        {
            "name": "Sample Extension",
            "id": "B000000009-sampleExtension",
            "criticality_indicator": "false",
            "data": {
                "B000000009-sampleExtension": {
                    "sampleData": "sampleValue"
                }
            }
        }
    ],
    "acs_reference_number": "3DS_LOA_ACS_201_13579",
    "whitelist_status": "PENDING_CARDHOLDER_CONFIRMATION"
}

Challenge Flow

In the challenge flow, the Issuer determines that further authentication is required for the transaction to proceed. This may be due to various reasons, including a high value transaction, unusual payment behavior for this particular customer (time of day, type of merchant and so on) or mismatching/not enough data has been submitted for them to make a determination.

Our 3DS solution will format the Challenge Request message and return it to your application for you to send it to the Issuer ACS. The Challenge Request is made up of various transaction variables including the identifiers for the authentication (Server Transaction ID, ACS Transaction ID and the Challenge Window Size). The Challenge Request must be sent to the ACS within 30 seconds or the challenge will timeout.

Challenge Response

{
    "server_trans_id": "ad0fffeb-bfff-44d0-881f-b857fe77c5a2",
    "acs_trans_id": "13c701a3-5a88-4c45-89e9-ef65e50a8bf9",
    "ds_trans_id": "c272b04f-6e7b-43a2-bb78-90f4fb94aa25",
    "authentication_type": "DYNAMIC_CHALLENGE",
    "acs_rendering_type": {},
    "challenge_mandated": true,
    "status": "CHALLENGE_REQUIRED",
    "status_reason": "LOW_CONFIDENCE",
    "challenge_request_url": "https://test.portal.gpwebpay.com/pay-sim-gpi/sim/acs",
    "authentication_source": "BROWSER",
    "message_category": "PAYMENT_AUTHENTICATION",
    "message_version": "2.2.0",
    "message_extension": [
        {
            "name": "Sample Extension",
            "id": "B000000009-sampleExtension",
            "criticality_indicator": "false",
            "data": {
                "B000000009-sampleExtension": {
                    "sampleData": "sampleValue"
                }
            }
        }
    ],
    "encoded_creq": "eyJ0aHJlZURTU2VydmVyVHJhbnNJRCI6ImFmNjVjMzY5LTU5YjktNGY4ZC1iMmY2LTdkN2Q1ZjVjNjlkNSIsImFjc1RyYW5zSUQiOiIxM2M3MDFhMy01YTg4LTRjNDUtODllOS1lZjY1ZTUwYThiZjkiLCJjaGFsbGVuZ2VXaW5kb3dTaXplIjoiNjAweDQwMCIsIm1lc3NhZ2VUeXBlIjoiQ3JlcSIsIm1lc3NhZ2VWZXJzaW9uIjoiMi4xLjAifQ",
    "acs_reference_number": "3DS_LOA_ACS_201_13579",
    "decoupled_response_indicator": "DECOUPLED_AUTHENTICATION_NOT_UTILISED",
    "whitelist_status": "PENDING_CARDHOLDER_CONFIRMATION"
}

Response syntax

Element/Field	Category	Format	Description
ACS Transaction ID	string	alphanumeric	Unique transaction identifier assigned by the ACS.
Authentication Source	string	enum	Indicates the type of channel used to initiate the transaction. Allowed Values: BROWSER MERCHANT_INITIATED MOBILE_SDK European merchants: required for SCA.
Authentication Type	string	enum	Indicates the type of authentication method the Issuer will use to challenge the customer. Possible values: STATIC_CHALLENGE DYNAMIC_CHALLENGE OUT_OF_BAND_CHALLENGE DECOUPLED
Authentication Value	string	alphanumeric	Unique value for the authentication provided by the ACS. Must be used to provide proof of authentication.
Cardholder Response Info	string	alphanumeric	Optional text provided by the ACS/Issuer to customer during a Frictionless transaction that was not authenticated. For example, a customer care phone number to call.
Challenge Mandated	boolean		Indicates whether a challenge is required due to local/regional mandates or another variable.
Challenge Request URL	string	Standard URL	Fully qualified URL of the ACS to be used for the challenge.
Challenge Window Size	string	enum	Dimensions of the challenge window that has been displayed to the customer. The ACS shall reply with content that is formatted to appropriately. Allowed values: WINDOWED_250X400 WINDOWED_390X400 WINDOWED_500X600 WINDOWED_600X400 FULL_SCREEN European merchants: mandatory for SCA.
Directory Server Transaction ID	string	alphanumeric	Unique identifier for the authentication assigned by the DS (Card Scheme).
Encoded Challenge Request	string	alphanumeric	The Challenge Request (CReq message) that has been Base64url encoded and must be sent to the ACS.
Eci	string	alphanumeric	The E-Commerce Indicator indicates whether chargeback protection is available for the transaction or not.

ACS challenge

To facilitate authentication your application/website will need to open the ACS URL in an iFrame. The content of the iFrame will be formatted in line with the Challenge Window Size parameter of the authentication request.

Sample code

var form = document.createElement("form");
form.setAttribute("method", "POST");
form.setAttribute("action", "https://www.acs.com/challenge");
form.setAttribute("target", "iframe");

var creqData = document.createElement("input");
creqData.setAttribute("type", "hidden");
creqData.setAttribute("name", "creq");
//add creq object obtained from the server
creqData.setAttribute("value", creqObject);
form.appendChild(creqData);

/* optional parameter to include Session Data
var sessionData = document.createElement("input");
sessionData.setAttribute("type", "hidden");
sessionData.setAttribute("name", "threeDSSessionData");
creqDatasetAttribute("value", sessionDataObject);
form.appendChild(sessionData);
*/

document.body.appendChild(form);

form.submit();

Sample challenge

The type of challenge displayed to the customer will be determined by the Issuer ACS and will align with at least two elements of Strong Customer Authentication:

Possession - Something only the customer has, for example their mobile device registered with their bank to which they will receive a code in an SMS.
Inherence - Something only the customer is, for example their fingerprint or other form of biometric data.
Knowledge - Something only the customer knows, for example a unique passphrase or answer to a personal question.

With the customer on the ACS, the following outcomes may occur:

The authentication is successful

(Transaction Status = Y)
The authentication fails and the customer is not given another chance.

(Transaction Status = N)
The authentication fails and the customer is given another chance

Once the customer completes the challenge (regardless of the outcome) the ACS performs two actions. First, it informs our 3DS solution of the result and passes along the authentication variables. Next, as with the ACS Method URL, it will send a from POST and redirect the browser to your Notification URL with the Challenge Result (CRes). Your client-side code will be able to detect the redirection.

We provide a Simulator Issuer ACS which allow you to test different challenge outcomes.

ACS Simulator

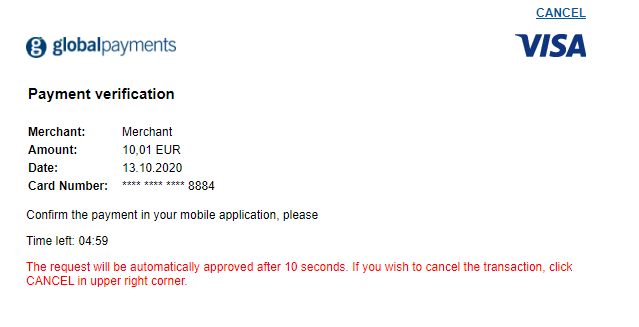

In the Sandbox environment, we provide an Issuer ACS simulator which allows you to test different challenge outcomes.

Once the challenge has loaded, after ten seconds the simulator will automatically complete the authentication and generate an Authentication Successful response (transStatus = “Y”). This is intended to mimic a scenario where a customer has received a notification on their phone to authenticate using their banking app.

Alternatively, clicking the Cancel button will generate an Authentication Failed response (transStatus = “N”). In either scenario the response will be sent in the Challenge Response message (CRes) to the Challenge Notification Endpoint.

Simulated Issuer Access Control Server

Simulated Issuer Access Control Server

Response syntax

The following fields will be returned to your application from the Issuer ACS.

Element/Field	Description
Server Transaction ID	Unique identifier for the authentication in our 3DS solution (3DS server). Must be used for all requests.
ACS Transaction ID	Unique transaction identifier assigned by the ACS.
Message Extension	Scheme specific data elements.
Message Type	The type of message. In this case it will always be CRes
Message Version	3DS protocol version identifier set by Global Payments.
Transaction Status from ACS	Indicates whether a transaction qualifies as an authenticated transaction or account verification. Possible values returned by the ACS: Y - Authentication/Account Verification Successful. N - Not Authenticated/Account Not Verified; Transaction denied.

Obtain Authentication Data

If the transaction qualifies as authenticated (Transaction Status = Y), the final step before processing the authorization is to obtain the necessary authentication data from our 3DS solution. This is the data the ACS passed to us when the customer completed the challenge.

To do this, we call the authentications endpoint with the relevant 3DS Server Transaction ID.

https://api.sandbox.globalpay-ecommerce.com/3ds2/authentications/{server_trans_id}?merchant_id={merchant_id}&request_timestamp={request_timestamp}

If the customer canceled during the challenge or the authentication did not proceed for another reason, the summary endpoint will also provide you with the information available so you can update your application/website accordingly.

The merchant will receive the Challenge Response message (CRes) encoded in base64 only, which then needs to be decoded. Once decoded, the merchant will be able to see the other parameters of the transaction to proceed to the next step.

The most important information we need for the authorization is the ECI and Authentication Value.

Sample request

curl "https://api.sandbox.globalpay-ecommerce.com/3ds2/authentications/ad0fffeb-bfff-44d0-881f-b857fe77c5a2?merchant_id=MerchantId&request_timestamp=2019-07-30T08:52:44.991911"
-H "Content-type: application/json"
-H "X-GP-VERSION: 2.2.0"
-H "Authorization: securehash 3acf61a9f49ee7a57fb57d710b97dd00399342a4"
-X GET

Sample response

{
    "server_trans_id": "af65c369-59b9-4f8d-b2f6-7d7d5f5c69d5",
    "acs_trans_id": "13c701a3-5a88-4c45-89e9-ef65e50a8bf9",
    "ds_trans_id": "c272b04f-6e7b-43a2-bb78-90f4fb94aa25",
    "authentication_type": "DYNAMIC_CHALLENGE",
    "authentication_value": "ODQzNjgwNjU0ZjM3N2JmYTg0NTM=",
    "eci": "05",
    "challenge_interaction_counter": 1,
    "challenge_mandated": true,
    "status": "AUTHENTICATION_SUCCESSFUL",
    "status_reason": "HIGH_CONFIDENCE",
    "challenge_request_url": "https://test.portal.gpwebpay.com/pay-sim-gpi/sim/acs",
    "authentication_source": "BROWSER",
    "message_category": "PAYMENT_AUTHENTICATION",
    "message_version": "2.2.0",
    "message_extension": [
        {
            "name": "Sample Extension",
            "id": "B000000009-sampleExtension",
            "criticality_indicator": "false",
            "data": {
                "B000000009-sampleExtension": {
                    "sampleData": "sampleValue"
                }
            }
        }
    ],
    "encoded_creq": "eyJ0aHJlZURTU2VydmVyVHJhbnNJRCI6ImFmNjVjMzY5LTU5YjktNGY4ZC1iMmY2LTdkN2Q1ZjVjNjlkNSIsImFjc1RyYW5zSUQiOiIxM2M3MDFhMy01YTg4LTRjNDUtODllOS1lZjY1ZTUwYThiZjkiLCJjaGFsbGVuZ2VXaW5kb3dTaXplIjoiNjAweDQwMCIsIm1lc3NhZ2VUeXBlIjoiQ3JlcSIsIm1lc3NhZ2VWZXJzaW9uIjoiMi4xLjAifQ",
    "decoupled_response_indicator": "DECOUPLED_AUTHENTICATION_NOT_UTILISED",
    "whitelist_status": "PENDING_CARDHOLDER_CONFIRMATION"
}

Response syntax

Element/Field	Category	Format	Description
ACS Transaction ID	string	alphanumeric	Unique transaction identifier assigned by the ACS.
Authentication Source	string	enum	Indicates the type of channel used to initiate the transaction. Allowed Values: BROWSER MERCHANT_INITIATED MOBILE_SDK European merchants: required for SCA.
Authentication Type	string	enum	Indicates the type of authentication method the Issuer will use to challenge the customer. Possible values: STATIC_CHALLENGE DYNAMIC_CHALLENGE OUT_OF_BAND_CHALLENGE DECOUPLED
Authentication Value	string	alphanumeric	Unique value for the authentication provided by the ACS. Must be used to provide proof of authentication.
Challenge Mandated	boolean		Indicates whether a challenge is required due to local/regional mandates or another variable.
Challenge Request URL	string	Standard URL	Fully qualified URL of the ACS to be used for the challenge.
Challenge Window Size	string	enum	Dimensions of the challenge window that has been displayed to the customer. The ACS shall reply with content that is formatted to appropriately. Allowed values: WINDOWED_250X400 WINDOWED_390X400 WINDOWED_500X600 WINDOWED_600X400 FULL_SCREEN European merchants: mandatory for SCA.
Directory Server Transaction ID	string	alphanumeric	Unique identifier for the authentication assigned by the DS (Card Scheme).
Encoded Challenge Request	string	alphanumeric	The Challenge Request (CReq message) that has been Base64url encoded and must be sent to the ACS.
Eci	string	alphanumeric	The E-Commerce Indicator indicates whether chargeback protection is available for the transaction or not.
Challenge Interaction Counter	string		The number of authentication attempts by the customer.
Message Category	string	enum	Indicates the type of channel used to initiate the transaction. Allowed Values: - non payment activity such as adding or maintaining cards or card verification (OTB). European merchants: required for SCA.

Authorization

If you are processing the payment with us, now that the 3D Secure process is complete, and depending on the ECI value returned, we can proceed to authorization while including the authentication data. The transaction will be processed as normal and may be successful or declined based on standard criteria; sufficient funds, correct security code entered and so on.

Sample request

<?xml version="1.0" encoding="UTF-8"?>
<request type="auth" timestamp="20180613104233">
  <merchantid>MerchantId</merchantid>
  <account>internet</account>
  <orderid>AWfoT2k9TzuA0wn8Ze_IIQ</orderid>
  <amount currency="EUR">1000</amount>
  <card>
    <number>4263970000005262</number>
    <expdate>0525</expdate>
    <chname>Philip Marlowe</chname>
    <type>VISA</type>
    <cvn>
      <number>123</number>
      <presind>1</presind>
    </cvn>
  </card>
  <autosettle flag="1"/>
  <mpi>
    <eci>5</eci>
    <ds_trans_id>c272b04f-6e7b-43a2-bb78-90f4fb94aa25</ds_trans_id>
    <authentication_value>ODQzNjgwNjU0ZjM3N2JmYTg0NTM=</authentication_value>
    <message_version>2.2.0</message_version>
    <exempt_status>LOW_VALUE</exempt_status>
  </mpi>
  <sha1hash>c87e5fa0858671510a02477d146ef744233e4ba8</sha1hash>
</request>

Request syntax (specific fields)

Type indicates whether the element is Mandatory (M), Optional (O), or Conditional (C) - dependent on another field.

Unless otherwise stated in the description, the allowed special characters in an alphanumeric string field are [/.-_‘,␣]

Element/Field	Category	Format	Type	Length	Description
Eci	string	alphanumeric	O	0-2	The E-Commerce Indicator indicates whether chargeback protection is available for the transaction or not.
Directory Server Transaction ID	string	alphanumeric			Unique identifier for the authentication assigned by the DS (Card Scheme).
Authentication Value	string	alphanumeric			Unique value for the authentication provided by the ACS. Must be used to provide proof of authentication.
Message Version	string	numeric			3DS protocol version identifier set by us.
Exempt Status	string	enum	O		Identifies the exemption to be applied: LOW_VALUE TRANSACTION_RISK_ANALYSIS TRUSTED_MERCHANT SECURE_CORPORATE_PAYMENT SCA_DELEGATION

Authentication Reporting

Search for a particular authentication or pull a list based on particular criteria. This request will return a summary object allowing you to see at a high-level the outcome of the authentication. The available filters for search are:

Start and End Timestamp
Card BIN
Directory Server (DS) Transaction ID
Order ID

For more information on the use cases of this functionality, please refer to the Documentation section.

Sample request

curl https://api.sandbox.globalpay-ecommerce.com/3ds2/authentications/search
-H "Content-type:  application/json"
-H "Authorization:  securehash fa4952541e657631c044bd5104e5cae50caa68ec"
-H Content-Type: application/json"
-d '{
	"request_timestamp": "2020-04-28T11:54:37.000",
	"merchant_id": "MerchantID",
	"account_id": "ecom3dsecure2",
	"start_timestamp": "2020-04-28T11:00:00.000",
	"end_timestamp": "2020-04-28T13:00:00.000"
}'

Request syntax

Type indicates whether the element is Mandatory (M), Optional (O), or Conditional (C) - dependent on another field.

Unless otherwise stated in the description, the allowed special characters in an alphanumeric string field are [/.-_‘,␣]

Element/Field	Category	Format	Type	Length	Description
Timestamp	timestamp	numeric	M	24-32	The timestamp of the request. Minimum of 3 microseconds precision, can be up to 6. Format: yyyy-MM-ddTHH:mm:ss.SSS
Merchant ID	string	alphanumeric	M	1-50	Your Client ID assigned by us. Allowed characters: [a-zA-Z0-9.]
Account	string	alphanumeric	O	0-30	The sub-account for this request to be processed through. Allowed characters: [a-zA-Z0-9.]
Start Timestamp	string	numeric	M	0-2048	The timestamp from which the list of records obtained should begin. Minimum of 3 microseconds precision, can be up to 6. Format: yyyy-MM-ddTHH:mm:ss.SSS
End Timestamp	string	numeric	M	0-2048	The timestamp of which the list of records obtained should end. Minimum of 3 microseconds precision, can be up to 6. Format: yyyy-MM-ddTHH:mm:ss.SSS
Card BIN	string	numeric	M	0-6	The BIN range of the card number - first six digits.
Card Number	string	numeric	M	12-19	The full Primary Account Number (PAN) of the card.
Server Transaction ID	string	alphanumeric			Unique identifier for the authentication in our 3DS solution (3DS server). Must be used for all requests.
Order Id	string	alphanumeric	M	1-50	A merchant supplied reference to identify this transaction. Must be unique for each attempt. Allowed characters: [a-zA-Z0-9_-]
Page Size	string	numeric	O		The number of records to return on each page of the response.
Page Number	string	numeric	O		The page number to return.
Sha1hash	string	alphanumeric	M	40	The signature for this request is made up of transaction elements and your Shared Secret. Automatically set by the SDK. Allowed characters: [0-9a-fA-F]

Sample response

{
  "page_size": 100,
  "page_number": 1,
  "total_records_available": 3,
  "start_timestamp": "2020-04-28T11:00:00.000",
  "end_timestamp": "2020-04-28T13:00:00.000",
  "transactions": [
    {
      "merchant_id": "MerchantID",
      "account_name": "ecom3dsecure2",
      "order_id": "20200428132617-310",
      "server_trans_id": "77b6ec4c-9f55-4b84-9456-c6098ebd29ca",
      "bin": 401200,
      "scheme": "VISA",
      "authentication_source": "BROWSER",
      "acs_trans_id": "d5dee8e4-41ef-40f0-9488-1af7440a909c",
      "acs_url": "https://test.portal.gpwebpay.com/pay-sim-gpi/sim/acs",
      "trans_status": "AUTHENTICATION_SUCCESSFUL",
      "trans_status_reason": "HIGH_CONFIDENCE"
    },
    {
      "merchant_id": "MerchantID",
      "account_name": "ecom3dsecure2",
      "order_id": "GPTesting-25294",
      "server_trans_id": "e94aaa8e-ad7f-4942-9206-be3fb39b03f8",
      "bin": 401200,
      "scheme": "VISA",
      "authentication_source": "BROWSER",
      "acs_trans_id": "a1ed0905-3f57-44b1-b93a-ed7d8a4de146",
      "acs_url": "https://test.portal.gpwebpay.com/pay-sim-gpi/sim/acs",
      "trans_status": "CHALLENGE_REQUIRED",
      "trans_status_reason": "LOW_CONFIDENCE"
    },
    {
      "merchant_id": "MerchantID",
      "account_name": "ecom3dsecure2",
      "order_id": "GPTesting-25294",
      "server_trans_id": "e94aaa8e-ad7f-4942-9206-be3fb39b03f8",
      "bin": 401200,
      "scheme": "VISA",
      "authentication_source": "BROWSER",
      "acs_trans_id": "2314349a-bbf0-4202-9175-a5253388f019",
      "acs_url": "https://test.portal.gpwebpay.com/pay-sim-gpi/sim/acs",
      "trans_status": "CHALLENGE_REQUIRED",
      "trans_status_reason": "LOW_CONFIDENCE"
    }
  ]
}

Response syntax

Element/Field	Category	Format	Description
ACS Transaction ID	string	alphanumeric	Unique transaction identifier assigned by the ACS.
Authentication Source	string	enum	Indicates the type of channel used to initiate the transaction. Allowed Values: BROWSER MERCHANT_INITIATED MOBILE_SDK European merchants: required for SCA.
Authentication Request Type	string	enum	Indicates the type of channel used to initiate the transaction. Allowed Values: PAYMENT_TRANSACTION RECURRING_TRANSACTION INSTALMENT_TRANSACTION ADD_CARD MAINTAIN_CARD CARDHOLDER_VERIFICATION European merchants: required for SCA.
Authentication Value	string	alphanumeric	Unique value for the authentication provided by the ACS. Must be used to provide proof of authentication.
Challenge Mandated	boolean		Indicates whether a challenge is required due to local/regional mandates or another variable.
Challenge Request URL	string	Standard URL	Fully qualified URL of the ACS to be used for the challenge.
Directory Server Transaction ID	string	alphanumeric	Unique identifier for the authentication assigned by the DS (Card Scheme).
Encoded Challenge Request	string	alphanumeric	The Challenge Request (CReq message) that has been Base64url encoded and must be sent to the ACS.
Eci	string	alphanumeric	The E-Commerce Indicator indicates whether chargeback protection is available for the transaction or not.
Message Category	string	enum	Indicates the type of channel used to initiate the transaction. Allowed Values: PAYMENT_AUTHENTICATION NON_PAYMENT_AUTHENTICATION - non payment activity such as adding or maintaining cards or card verification (OTB). European merchants: required for SCA.
Message Version	string	numeric	3DS protocol version identifier set by us.
Server Transaction ID	string	alphanumeric	Unique identifier for the authentication in our 3DS solution (3DS server). Must be used for all requests.

Error codes

HTTP Status Code	HTTP Status	Description
400	Bad Request	Request message validation failure. The response body will indicate which fields were missing or had invalid values. Please see below. If the JSON formatting of the request was invalid, no response body will be returned.
401	Unauthorised	The value supplied in the Authorization header was incorrect. Please refer to the How to build the Request Hash documentation in the API Explorer.
404	Not Found	The specified resource in the request could not be found. Resource may refer to a number of elements including: * Merchant Id * Account * Currency Configuration * Payer Reference
405	Method Not Allowed	An incorrect REST verb when sending the request.
415	Unsupported Media Type	Unsupported request format.
500	Internal Server Error	An unexpected internal error occurred with the 3DS Solution.
501	Not Implemented	The 3DS Solution does not support the card type submitted in the request.
502	Bad Gateway	Downstream error with either the Card Scheme Directory Server or the Issuer ACS.

Response body detail

In the case of a 400 Bad Request the body of the response will indicate which field(s) were either missing or had invalid values and so on.

Sample response

{
  "three_dsserver_trans_id": "3bc076c0-b108-4916-8af8-042d1ac91aac",
  "error_code": "201",
  "error_component": "S",
  "error_description": "Required Data Element",
  "error_detail": "deviceChannel",
  "error_message_type": "AReq",
  "message_type": "Error",
  "message_version": "2.1.0"
}

Response syntax

Element/Field	Format	Description
three_dsserver_trans_id	String	Unique identifier for the authentication in the Global Payments 3DS solution (3DS server). Must be used for all requests.
error_code	Integer	EMV 3D Secure error code.
error_component	String	The 3D Secure component where the error occurred. Possible values: C - 3DS SDK (iOS or Android) S - 3DS Server (Global Payments 3DS Solution) D - DS (Card Scheme Directory Server) A - ACS (Issuer Access Control Server)
error_description	String	An overview of the error.
error_detail	String	Lists the detail of each individual error. For example, in the event multiple fields have invalid values, each field will be listed.
error_message_type	String	The message that the error pertains to.
message_type	String	As per EMVCo.this will always be Error - Error.
message_version	String	The version of the 3D Secure 2 protocol being used.

Generate hash

Follow the steps in this section to build the request security hash, concatenate the specified fields and hash them using the SHA-1 algorithm, concatenate the hashed string with your Shared Secret, hash it again, and add the resulted string to the request.

In addition to SHA-1, you can also generate your hash using SHA-256. The resulting hash should be placed in the tag instead of the tag. For more information, contact our support team.

Build the request hash

Use the tabs below to follow the steps for a certain request type: Check Version, Initiate Authentication, Obtain Authentication Data, or Authentication Reporting.

1. Create a SHA-1 hash made up of request values

The blueprint of the hash for this request is:

"request_timestamp.merchant_id.cardnumber"

Based on the XML example above our initial string will be:

"2019-04-26T10:16:10.154248.MerchantId.4263970000005262"

2. Concatenate the hashed string with your Shared Secret

After step 1, you'll have a string like: 72A214632FB0D3448D61F85EA88B94CD3AB79F97

You'll need to concatenate this with your Shared Secret, for example:

"72A214632FB0D3448D61F85EA88B94CD3AB79F97.Po8lRRT67a"

3. SHA-1 hash the concatenated string

Our final string that we add to the request should be a hash, using the SHA-1 algorithm, of your concatenated string. For example: 833869AD3052564C850393FD750694B211133406
